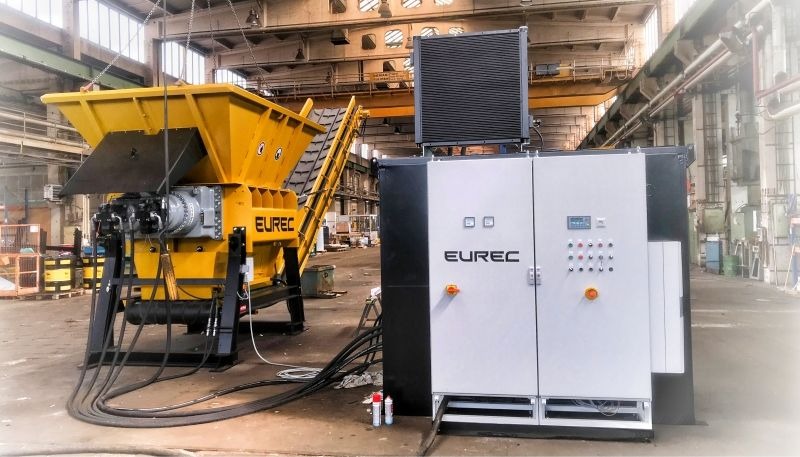

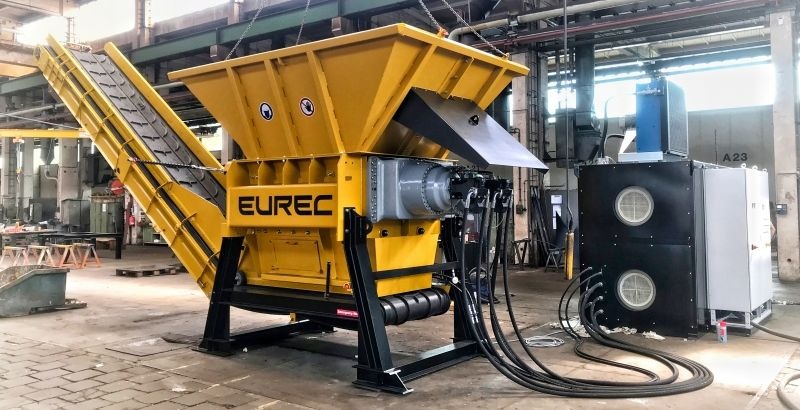

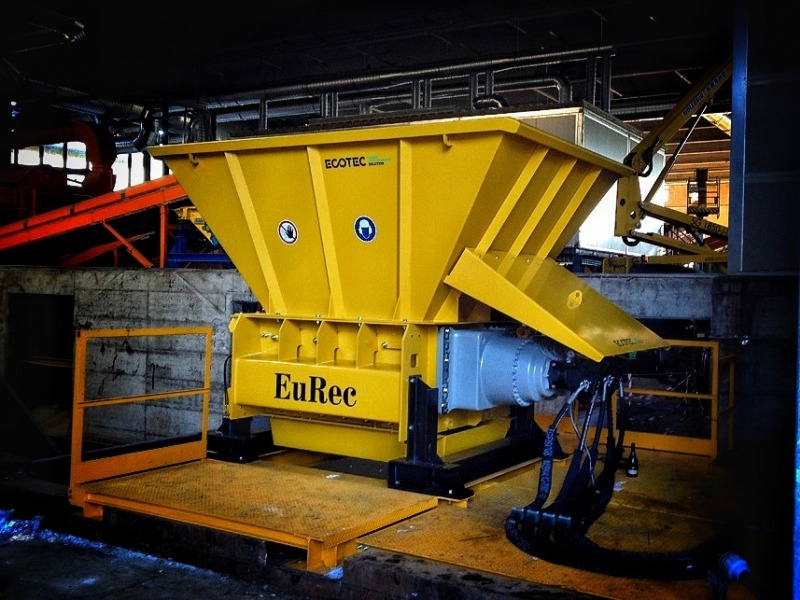

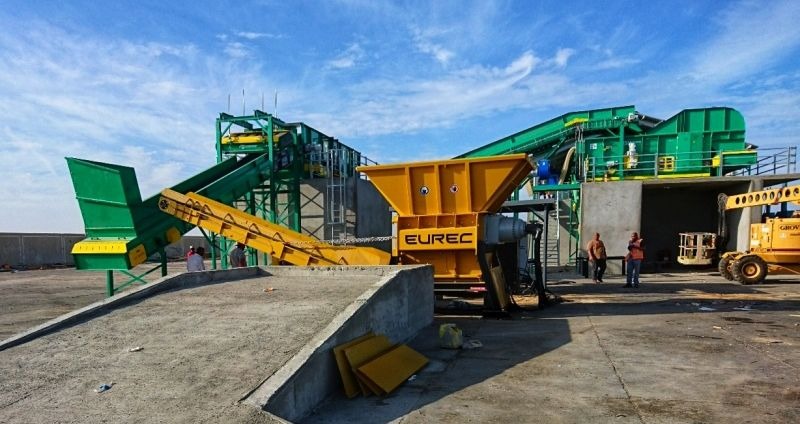

EUREC S MODEL 16.10 E (stationary)

Model S 16 is our best-selling and most popular slow-speed shredder with medium throughput for a reasonable price.This unit features sufficient technical parameters to ensure good shredding processes for most small and medium-sized landfills. The S 16 model is relatively easy to transport using a hooklift or a low-floor trailer, available as a semi-mobile version, mobile version on a tracks, and a stationary unit with a diesel or electric drive.

KEY FEATURES AND OPTIONS

Capacious infeed hopper equipped with hydraulicly lifted tipping table
261 KW (350 HP) diesel motor or 2 x 90 KW (123 HP) electric motor
Stable frame below the tipping hopper protects tipping hopper, exhaust system and hydraulic cylinders
Unique dual shaft design
Triangular torque supports below the screwed side-arranged combs protects fixings from shea-ring
Additional free space in front of the tool shaft bearings (open at the top and bottom). Winding and abrasive material does not get in direct contact with the shaft sealings, whereby the operational lifespan of the bearings increases considerably.

PRODUCT DETAILS

Dane Techniczne
Silnik:	Wysokoprężny: ca. 190 kW Elektryczny: 2 x 90 kW Opcjonalnie dostępny: 2 x 110 kW lub 200 kW
Przełożenie:	Patent EuRec
Nominalny Moment Obrotowy Przekładni:	160.000 Nm
System Rozdrabniania:	EuRec Patent
Prędkość Wałów:	znamionowa 15 - 32 obr/min regulowana w zakresie 0 - 32 obr/min
*Wydajność:**
Odpady rezydentalne:	do 50 t/godz.
Drewno odpadowe:	do 40 t/godz.
Odpady wielkogabarytowe/przemysłowe:	do 30 t/godz.
*Wydajność uzależniona jest między innymi od rodzaju i składu materiału, pożądanej frakcji wyjściowej oraz rodzaju podawania.

AREAS OF APPLICATION

Shredders of the S 16 type shred reliably domestic waste, residual waste, industrial waste, bulky refuse, mixed construction waste, waste wood, demolition wood, logs and roots, cable drums, railway sleepers, pruning, plastics, aluminium profiles, scrap metal, roofing felt, bituminous sheeting, and many more. The tools undergo just a low wearing. Even difficult to shred materials like mattresses, carpets or tires are torn adequately. Organic components as part of the waste material are loosened during the shredding process and can be picked up by our Disc Separator in the course of a further treatment. We attach special importance to the design of different tools for different use and to the selection of the steel the tools are made of to reduce wear and optimize costs. It is an integral part of our know-how.

COMPARISON TABLE

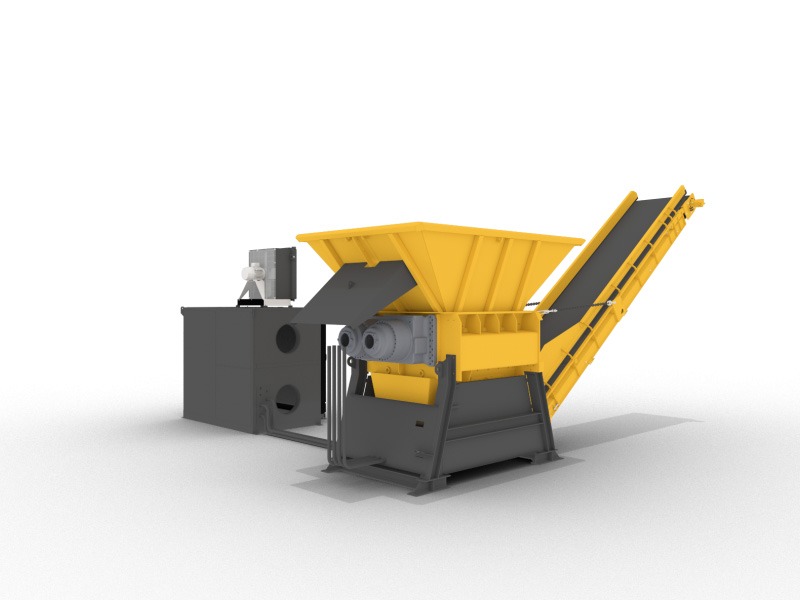

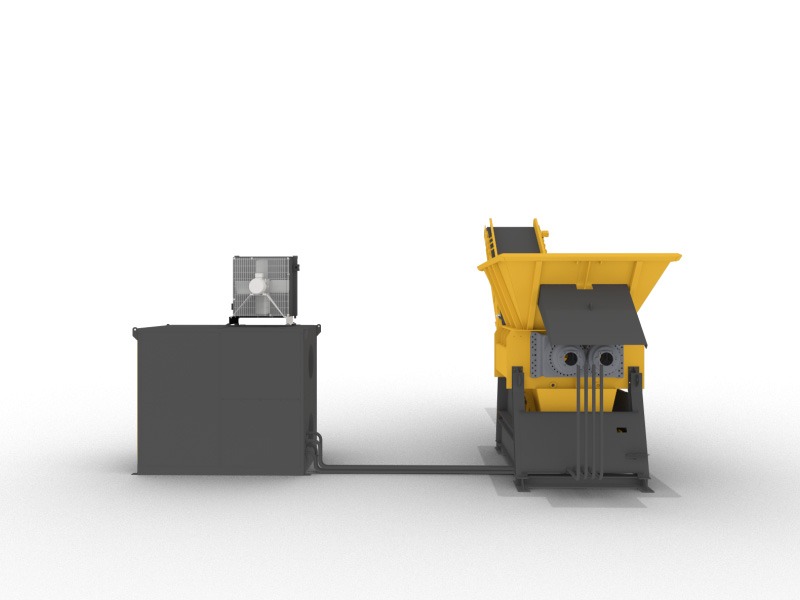

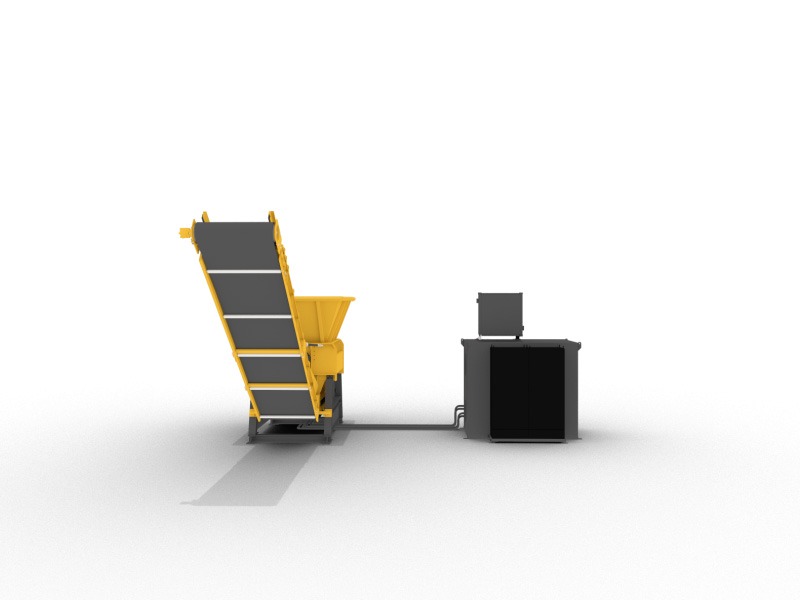

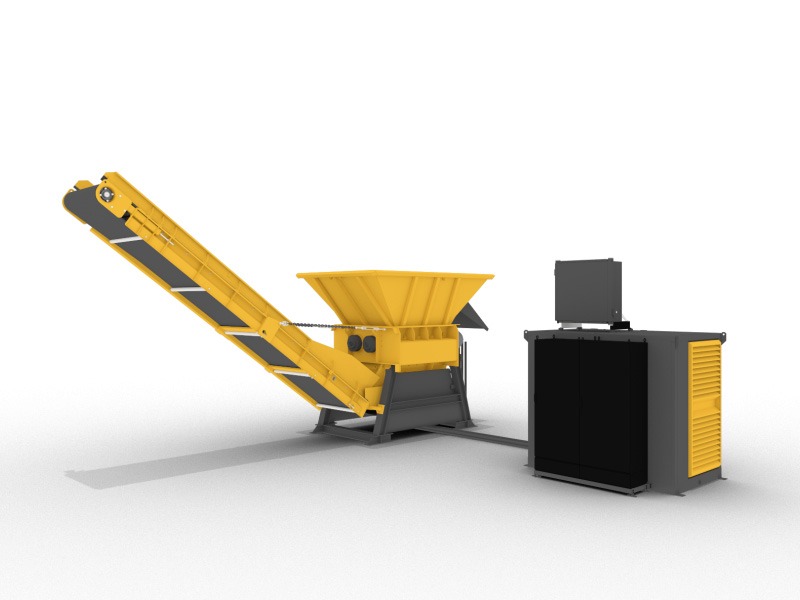

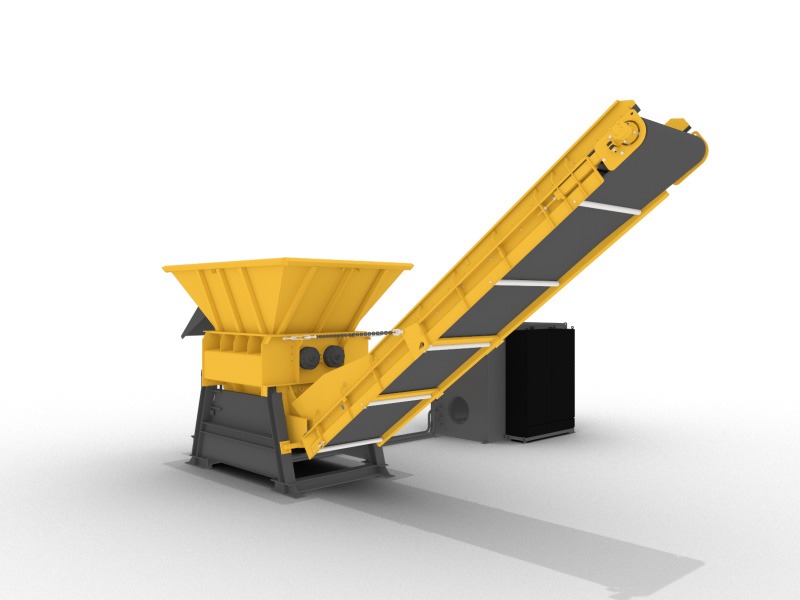

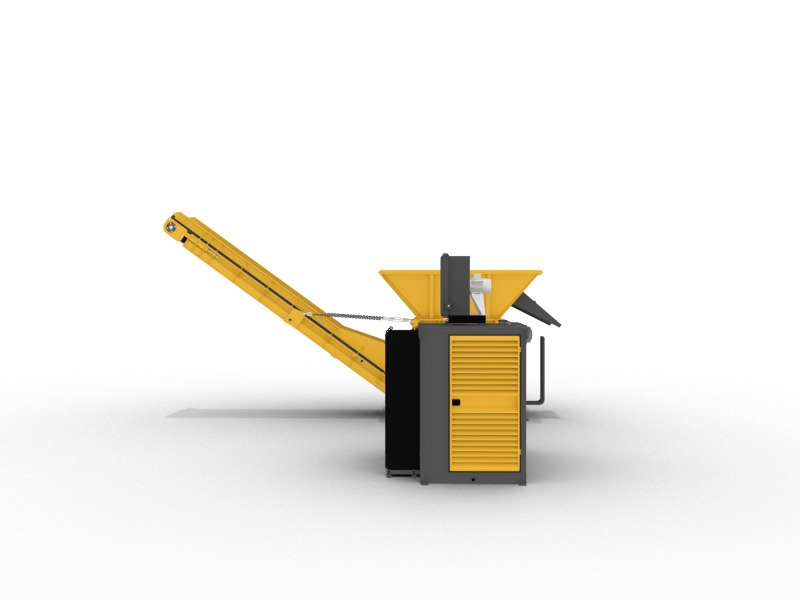

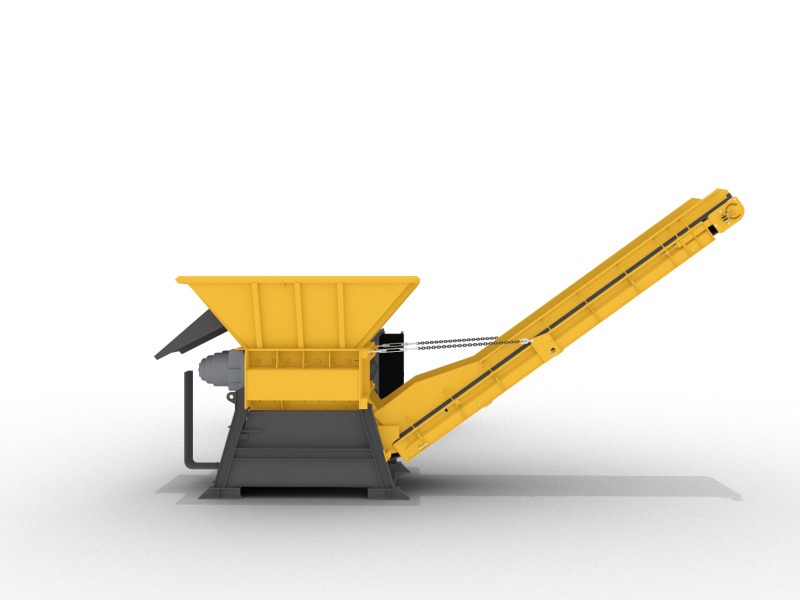

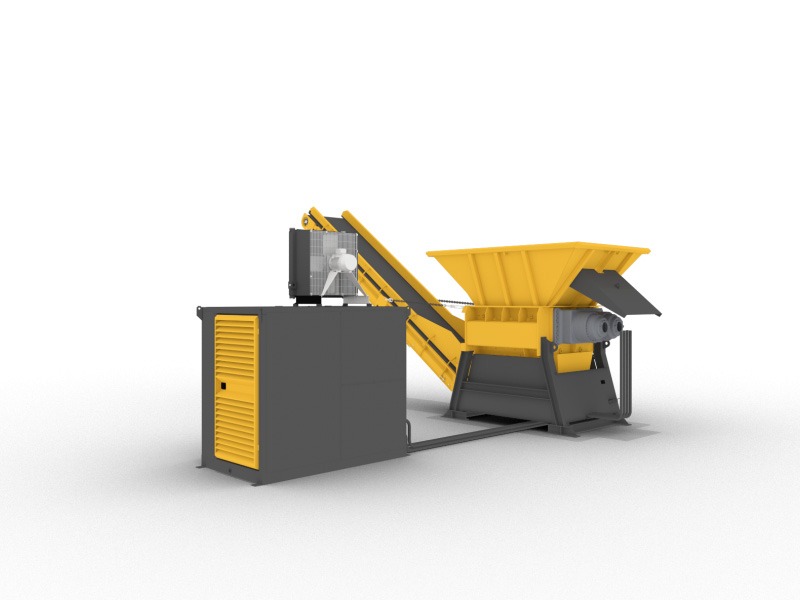

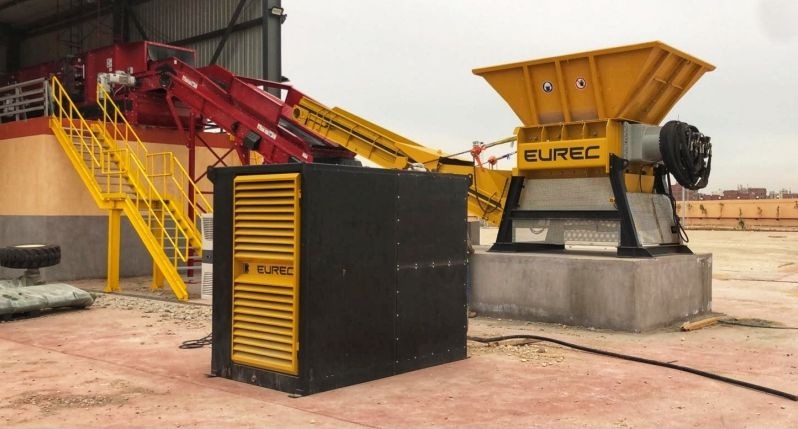

	S 16.00 On basic frame for stationary use or on hook-lift frame with container rollers and optionally with wheel axle for semi-mobile use.	S 16.05 On tracked chassis for mobile use, maneuver by use of a remote control.	S 16.10 Stationary on basic frame with separately erected drive unit.
Radio remote control	√	√	√
Tipping hopper	√	√	ο
Hopper extension	ο	ο	ο
Wheel axle without StVZO	ο	×	×
Special tools	ο	ο	ο
Breaker bar	ο	ο	ο
Discharge conveyor height > 4 m	ο	ο	ο
Conveyor belt monitoring	√	√	√
Overbelt magnet (various)	ο	ο	ο
√ - inklusive ο - optional × - not applicable
