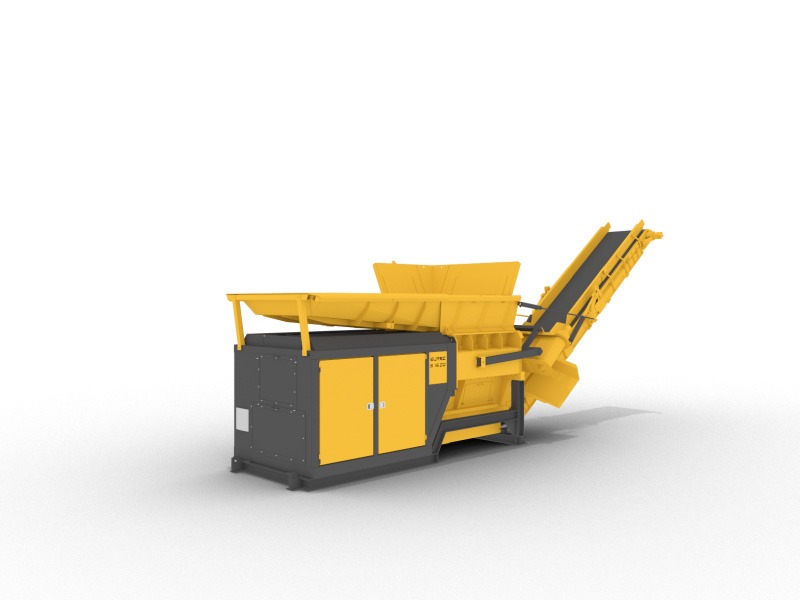

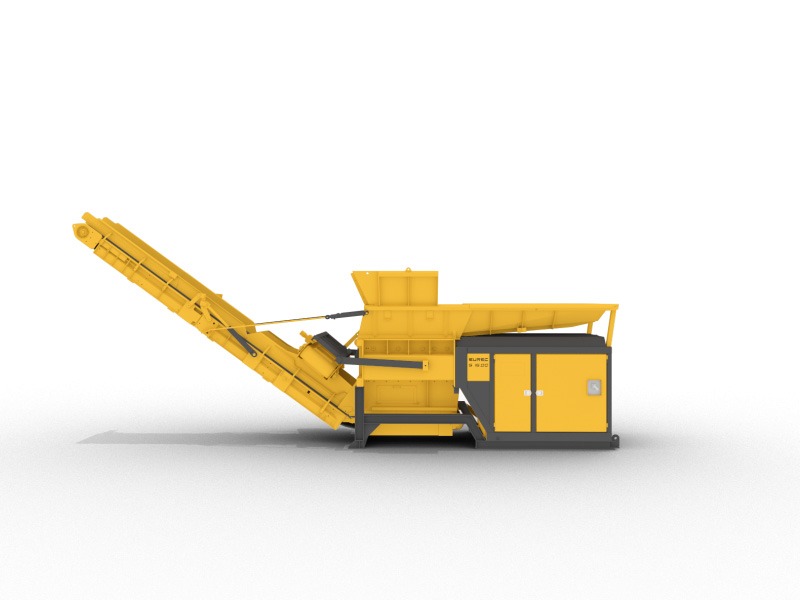

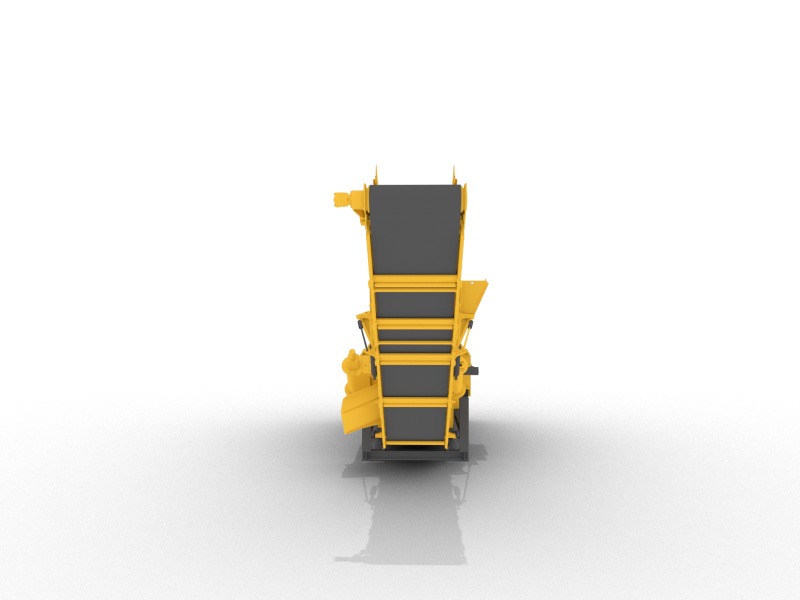

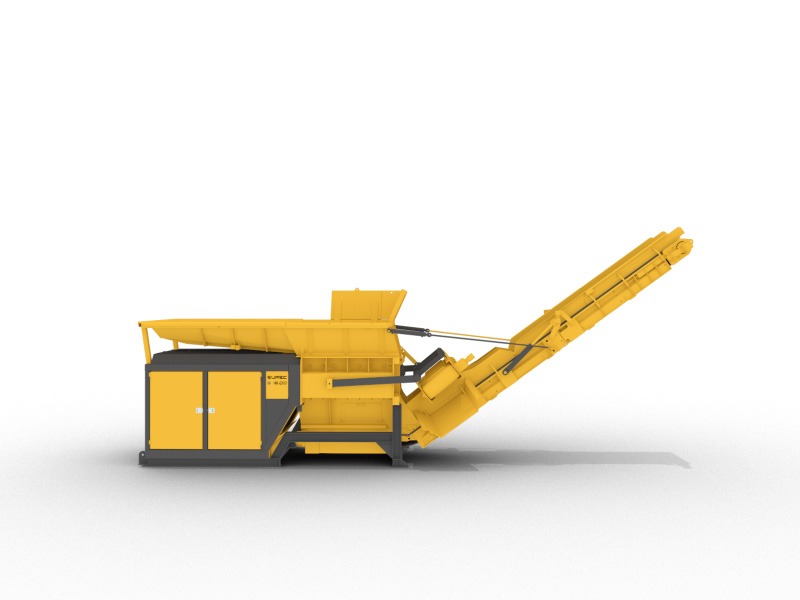

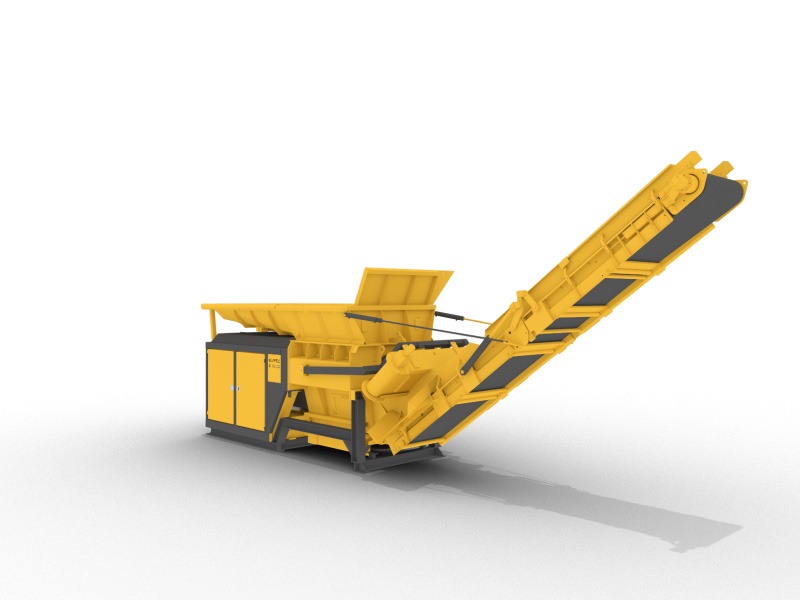

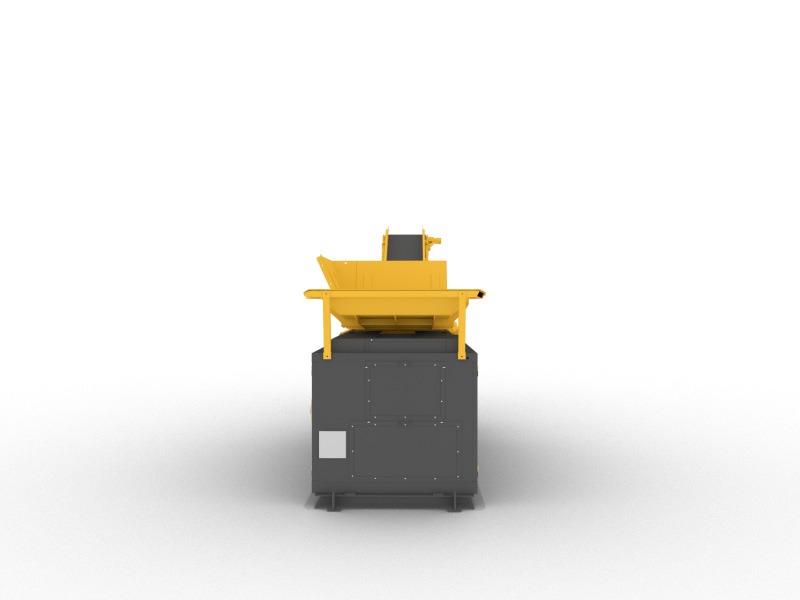

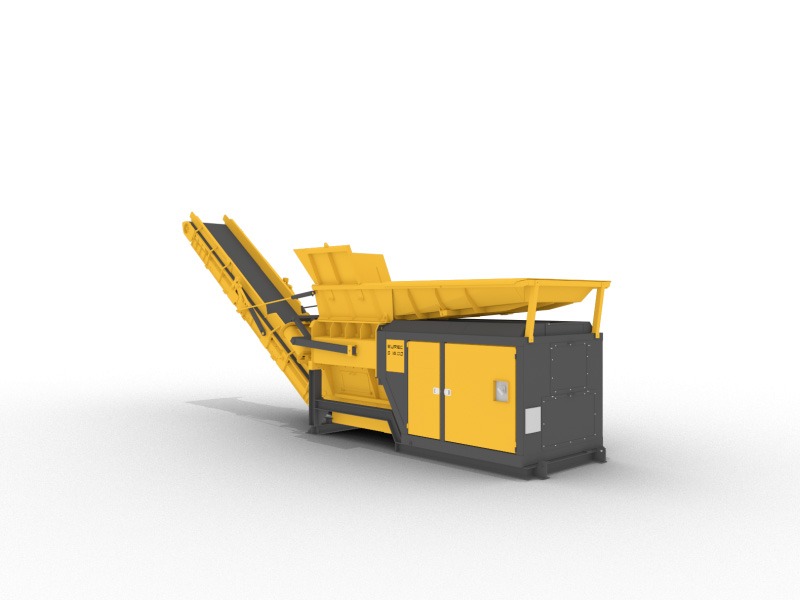

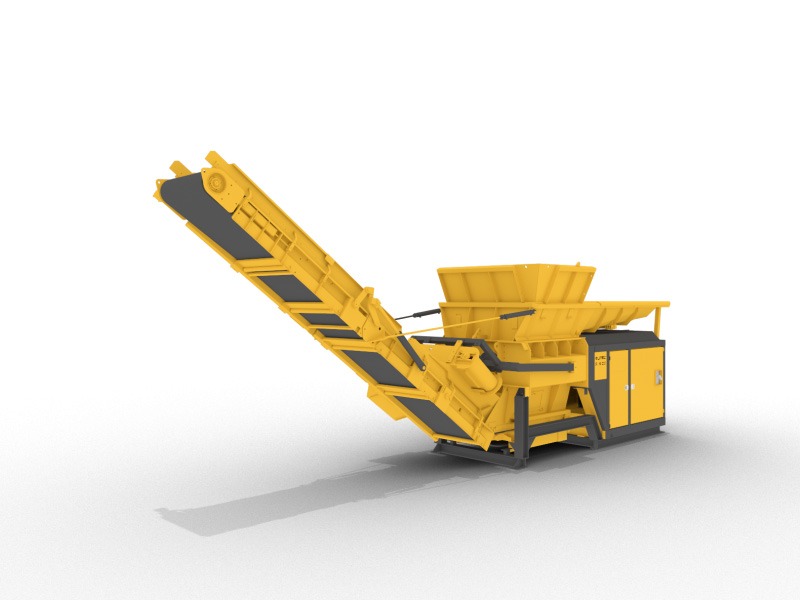

EUREC S MODEL 11.00 D (stationary)

The Model S 11 is an example of the lightest twin shaft shredder in our line-up dedicated for smaller scale operations. Don't be fooled by its position in the product line, this unit features wide infeed hopper system, as well as a powerful engine and very efficient gearbox to guarantee a good performance in conditions of smaller waste reduction plants. Model S 11 is also easy to transport with a hooklift or low-floor trailer. The S 11 model is available as semi-mobile (wheels), mobile (tracks) and stationary unit with diesel or an electric drive.

KEY FEATURES AND OPTIONS

Capacious infeed hopper equipped with hydraulicly lifted tipping table
190 KW (255 HP) diesel motor or 1 x 132 KW (180 HP) electric motor
Stable frame below the tipping hopper protects tipping hopper, exhaust system and hydraulic cylinders
Unique dual shaft design
Triangular torque supports below the screwed side-arranged combs protects fixings from shea-ring
Additional free space in front of the tool shaft bearings (open at the top and bottom). Winding and abrasive material does not get in direct contact with the shaft sealings, whereby the operational lifespan of the bearings increases considerably.

PRODUCT DETAILS

Technical Data
Drive performance:	Diesel motor: ca. 190 kW Electric motor: 1 x 132 kW
Gearbox:	Patent EuRec
Nominal torque:	110.000 Nm
Tools:	EuRec Patent
Speed:	rated speed 15 - 32 rpm variable regulation 0 - 35 rpm
*Throughput:**
Domestic waste:	up to 35 t/h
Waste wood:	up to 40 t/h
Industrial waste:	up to 20 t/h
*Among others, the throughput depends on material composition, requested output grain size and type of feeding.

AREAS OF APPLICATION

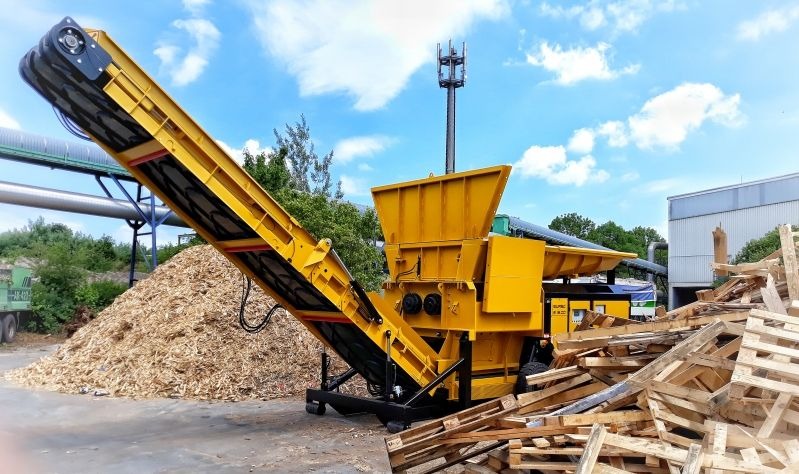

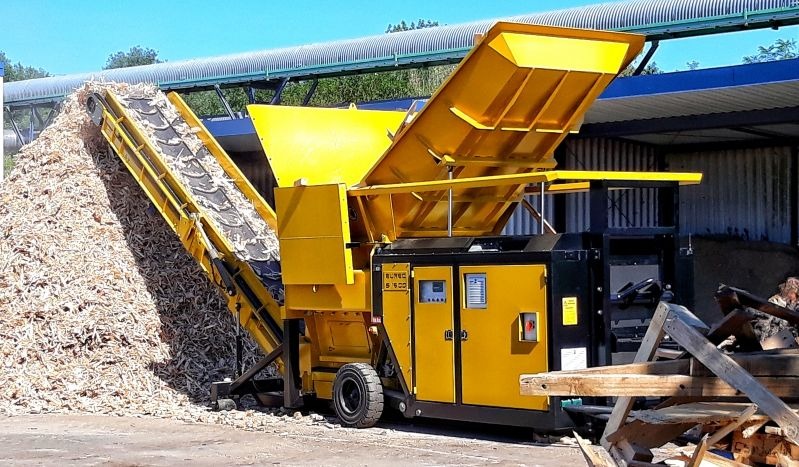

Shredders of the S 11 type shred reliably domestic waste, residual waste, industrial waste, bulky refuse, mixed construction waste, waste wood, demolition wood, logs and roots, cable drums, railway sleepers, pruning, plastics, aluminium profiles, scrap metal, roofing felt, bituminous sheeting, and many more. The tools undergo just a low wearing. Even difficult to shred materials like mattresses, carpets or tires are torn adequately. Organic components as part of the waste material are loosened during the shredding process and can be picked up by our Disc Separator in the course of a further treatment. We attach special importance to the design of different tools for different use and to the selection of the steel the tools are made of to reduce wear and optimize costs. It is an integral part of our know-how.

COMPARISON TABLE

	S 11.00 Na ramie podstawowej do użytku stacjonarnego lub na ramie hakowej z rolkami dla kontenerów oraz opcjonalnie z osią jezdną do użytku półmobilnego.	S 11.05 Na podwoziu gąsienicowym do użytku mobilnego, sterowanie poprzez zdalny sterownik bezprzewodowy	S 11.10 Na ramie podstawowej do użytku stacjonarnego z oddzielnie instalowanym modułem jednostki napędowej
Zdalne sterowanie bezprzewodowe	√	√	√
Hydraulicznie unoszony stół zasypowy	√	√	ο
Podwyższony kosz zasypowy	ο	ο	ο
Oś jezdna bez StVZO	ο	×	×
Specjalne narzędzia robocze	ο	ο	ο
Belka łamiąca pomiedzy wałami	ο	ο	ο
Wysokość hałdowania powyżej 4 m	ο	ο	ο
Monitorowanie taśmy wyrzutowej	√	√	√
Magnes nadtaśmowy (różne)	ο	ο	ο
√ - w kompletacji ο - opcja × - nie dotyczy
