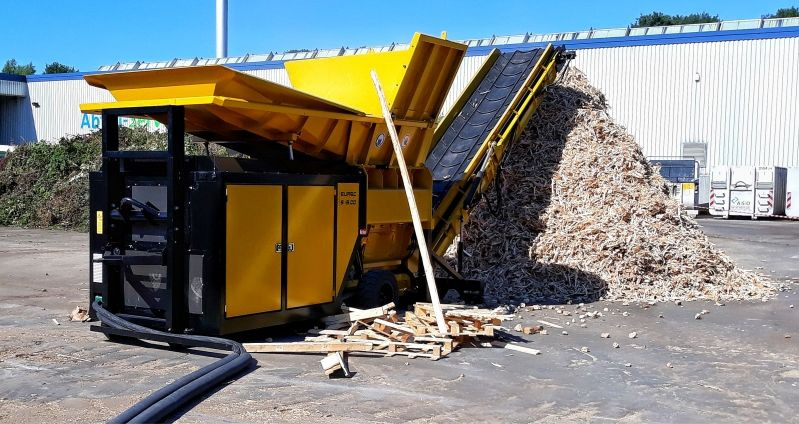

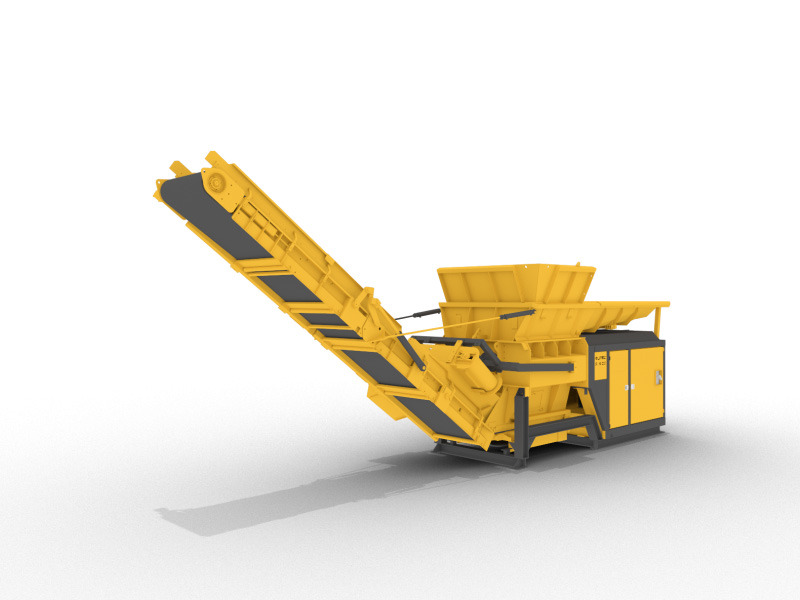

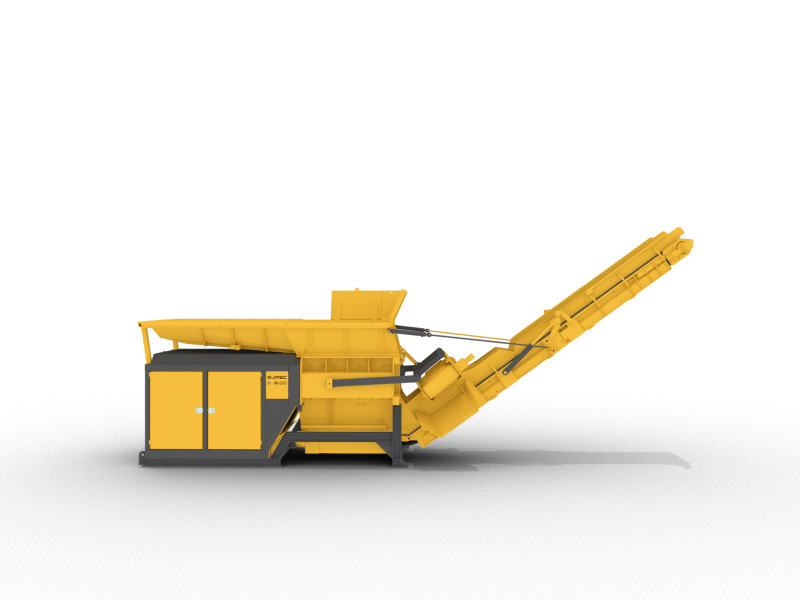

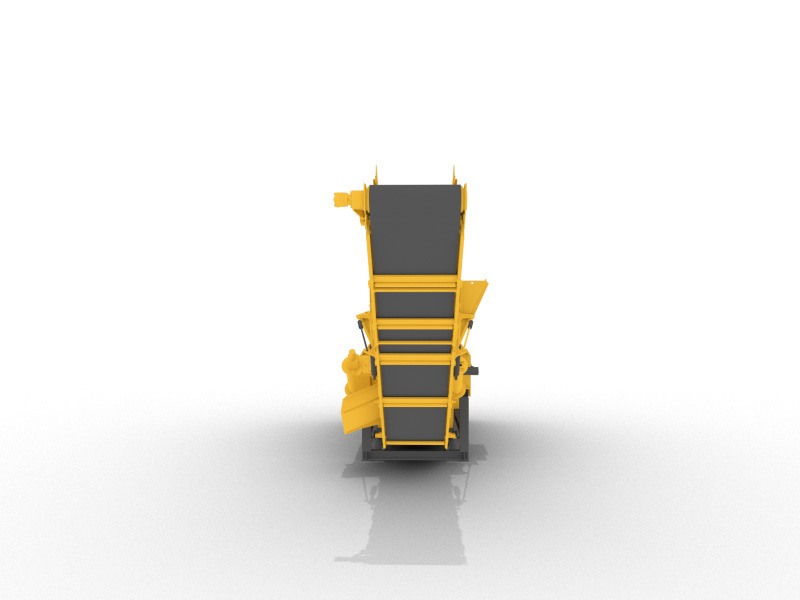

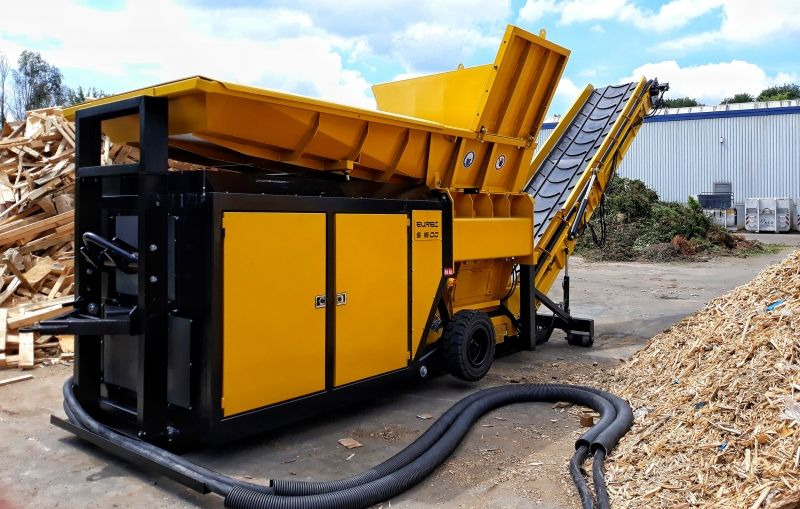

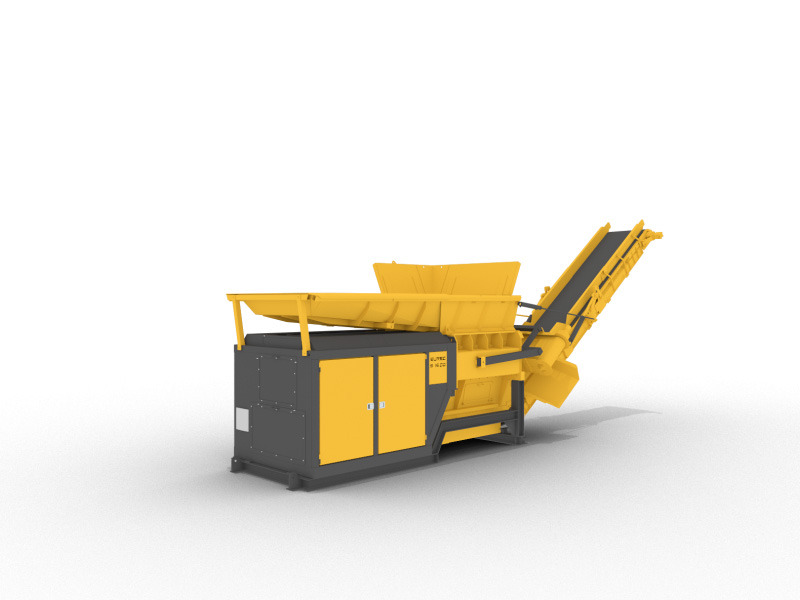

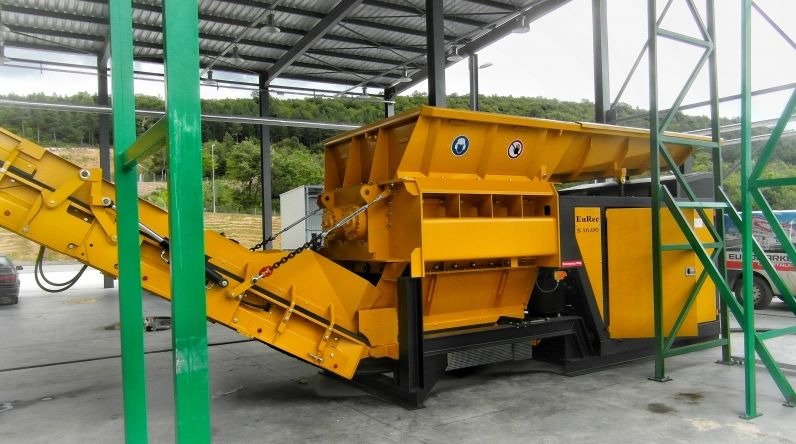

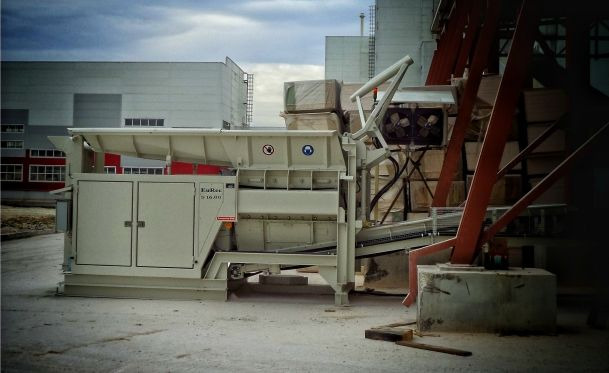

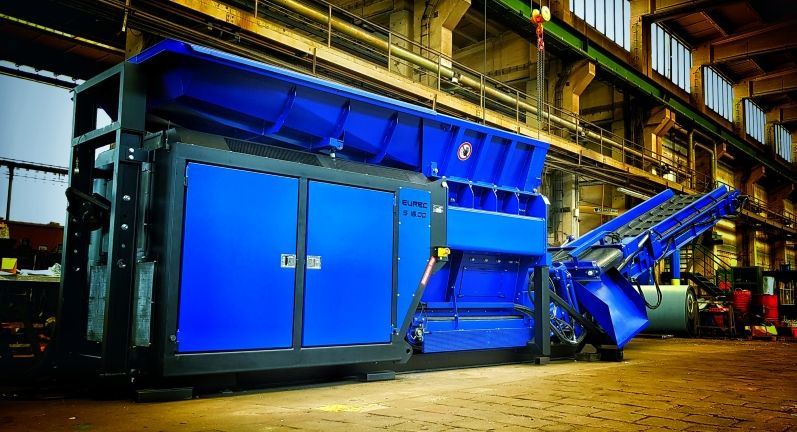

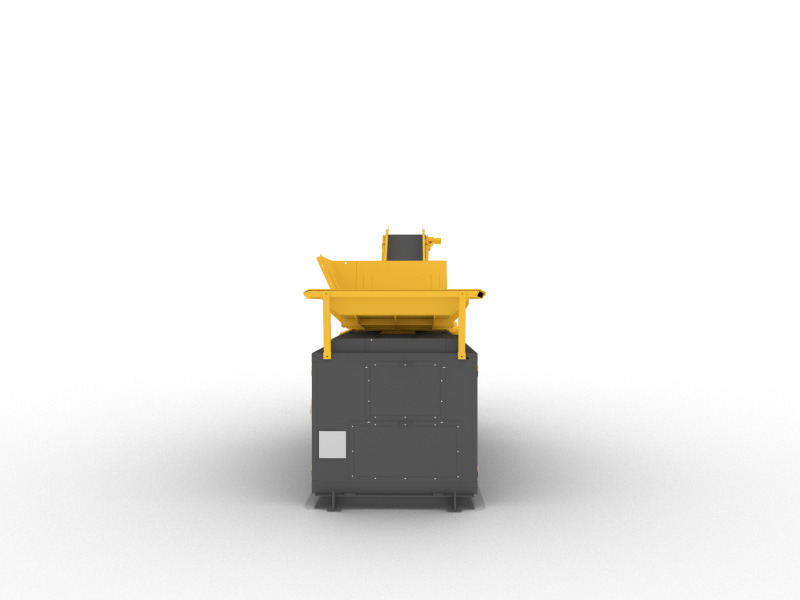

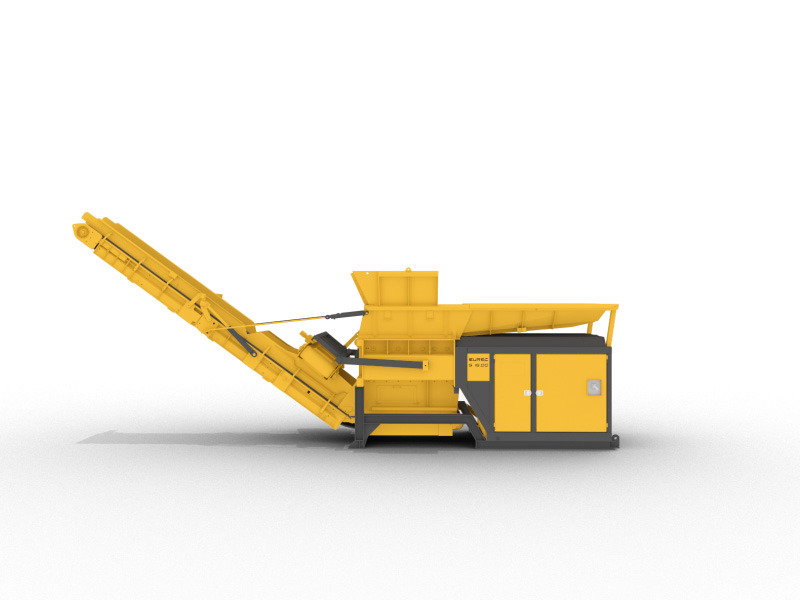

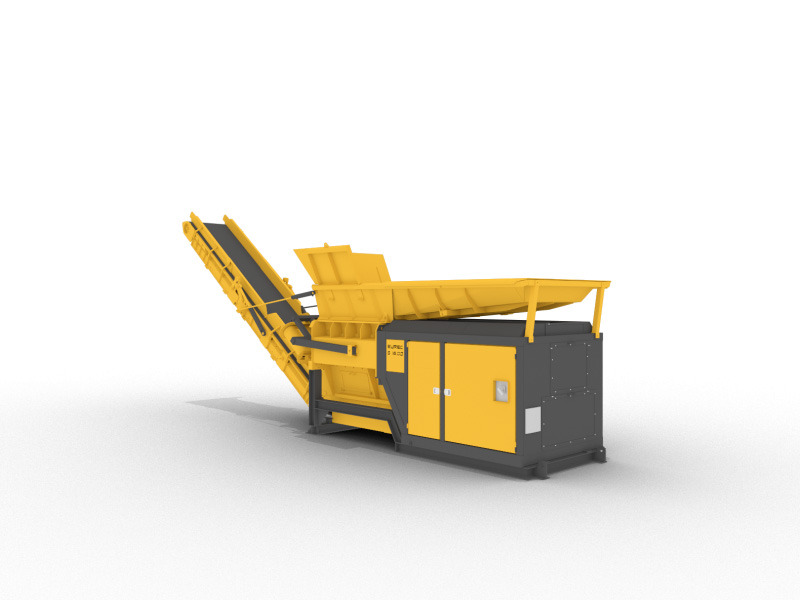

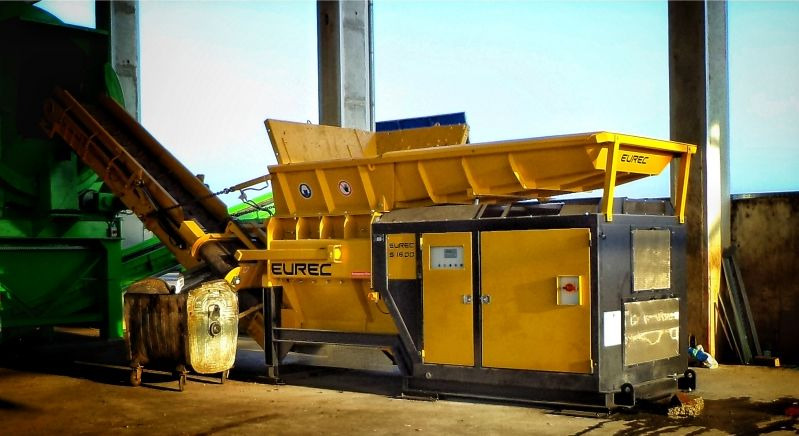

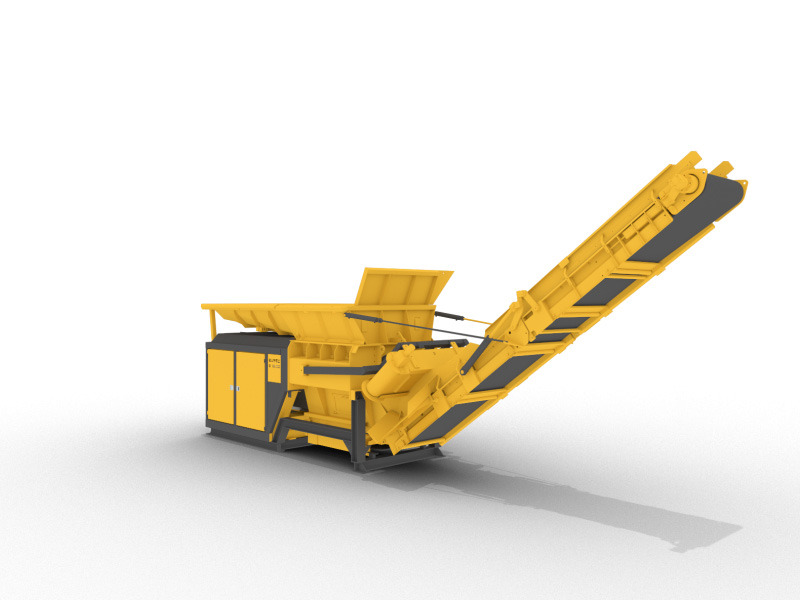

EUREC S MODEL 19.00 E (stationary)

Model S 19 is our latest slow-speed shredder with stronger gearbox and larger throughput for a reasonable price. This unit is still relatively easy to transport using a hooklift or low-floor trailer, just similar to the S11 or S16 models. The S 19 model is available as a semi-mobile version, mobile version on a tracks, and a stationary unit with a diesel or electric drive.

KEY FEATURES AND OPTIONS

Capacious infeed hopper equipped with hydraulicly lifted tipping table
280 KW (375 HP) diesel motor or 2 x 90 KW (123 HP) electric motor
Nominal gearbox torque 190.000 Nm
Stable frame below the tipping hopper protects tipping hopper, exhaust system and hydraulic cylinders
Unique dual shaft design
Triangular torque supports below the screwed side-arranged combs protects fixings from shea-ring
Additional free space in front of the tool shaft bearings (open at the top and bottom). Winding and abrasive material does not get in direct contact with the shaft sealings, whereby the operational lifespan of the bearings increases considerably.

PRODUCT DETAILS

Technical Data
Drive performance:	Diesel motor: ca. 280 kW Electric motor: 2 x 90 kW Optionally available: 2 x 110 kW or 200 kW
Gearbox:	Patent EuRec
Nominal torque:	190.000 Nm
Tools:	EuRec Patent
Speed:	rated speed 15 - 32 rpm variable regulation 0 - 32 rpm
*Throughput:**
Domestic waste:	up to 65 t/h
Waste wood:	up to 80 t/h
Industrial waste:	up to 40 t/h
*Among others, the throughput depends on material composition, requested output grain size and type of feeding.

AREAS OF APPLICATION

Shredders of the S 19 type shred reliably domestic waste, residual waste, industrial waste, bulky refuse, mixed construction waste, waste wood, demolition wood, logs and roots, cable drums, railway sleepers, pruning, plastics, aluminium profiles, scrap metal, roofing felt, bituminous sheeting, and many more. The tools undergo just a low wearing. Even difficult to shred materials like mattresses, carpets or tires are torn adequately. Organic components as part of the waste material are loosened during the shredding process and can be picked up by our Disc Separator in the course of a further treatment. We attach special importance to the design of different tools for different use and to the selection of the steel the tools are made of to reduce wear and optimize costs. It is an integral part of our know-how.

COMPARISON TABLE

	S 19.00 Na ramie podstawowej do użytku stacjonarnego lub na ramie hakowej z rolkami dla kontenerów oraz opcjonalnie z osią jezdną do użytku półmobilnego.	S 19.05 Na podwoziu gąsienicowym do użytku mobilnego, sterowanie poprzez zdalny sterownik bezprzewodowy	S 19.10 Na ramie podstawowej do użytku stacjonarnego z oddzielnie instalowanym modułem jednostki napędowej
Zdalne sterowanie bezprzewodowe	√	√	√
Hydraulicznie unoszony stół zasypowy	√	√	ο
Podwyższony kosz zasypowy	ο	ο	ο
Oś jezdna bez StVZO	ο	×	×
Specjalne narzędzia robocze	ο	ο	ο
Belka łamiąca pomiedzy wałami	ο	ο	ο
Wysokość hałdowania powyżej 4 m	ο	ο	ο
Monitorowanie taśmy wyrzutowej	√	√	√
Magnes nadtaśmowy (różne)	ο	ο	ο
√ - w kompletacji ο - opcja × - nie dotyczy
