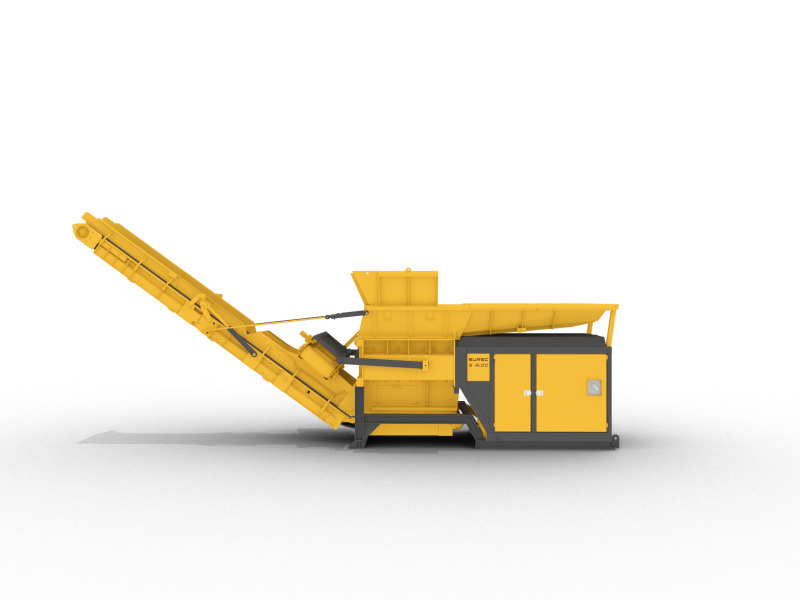

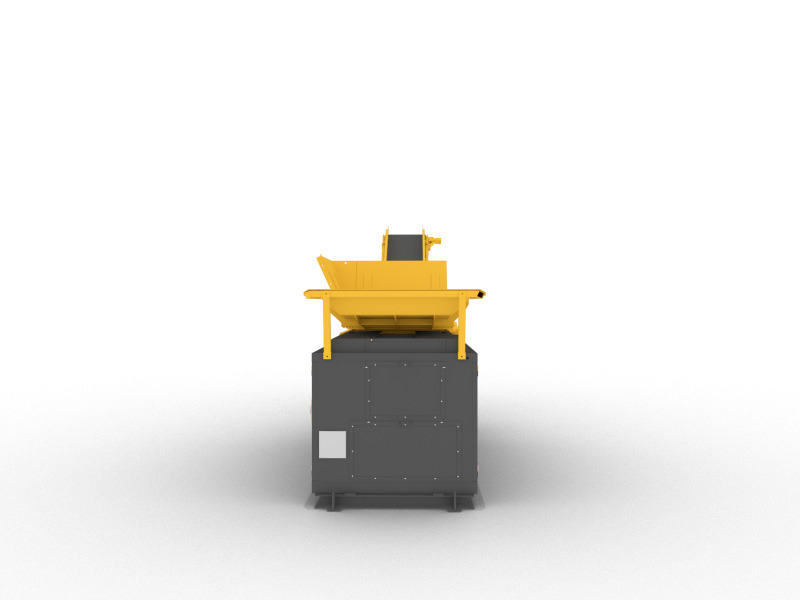

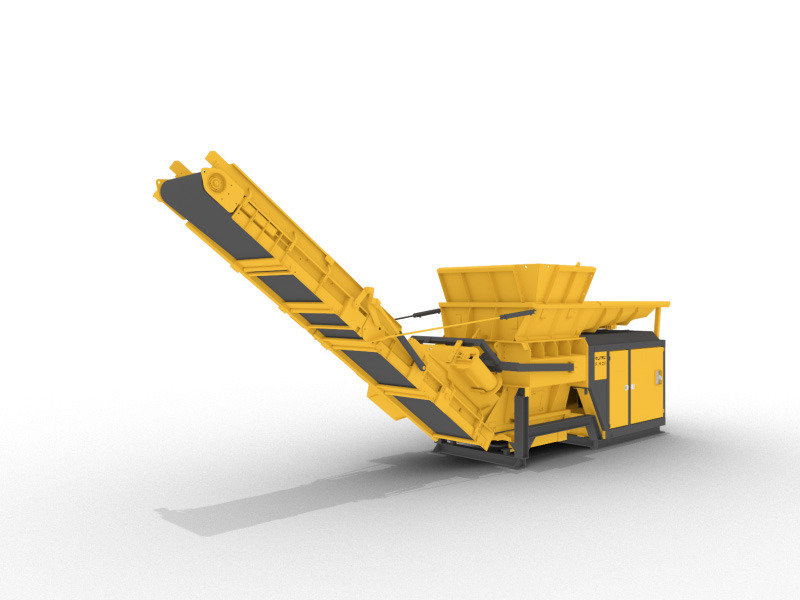

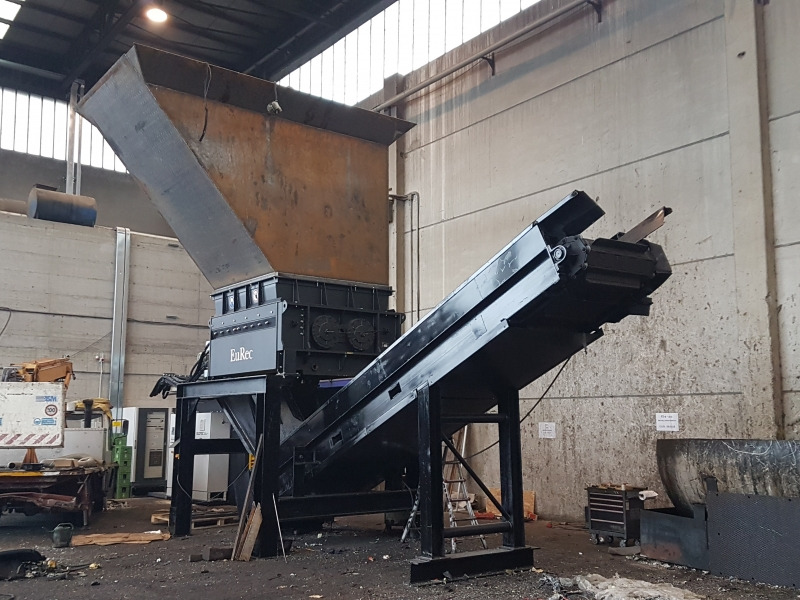

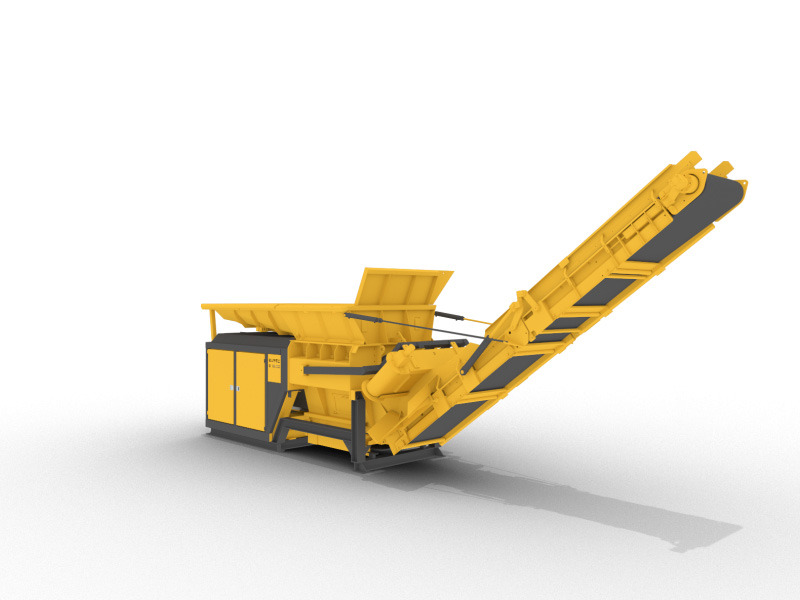

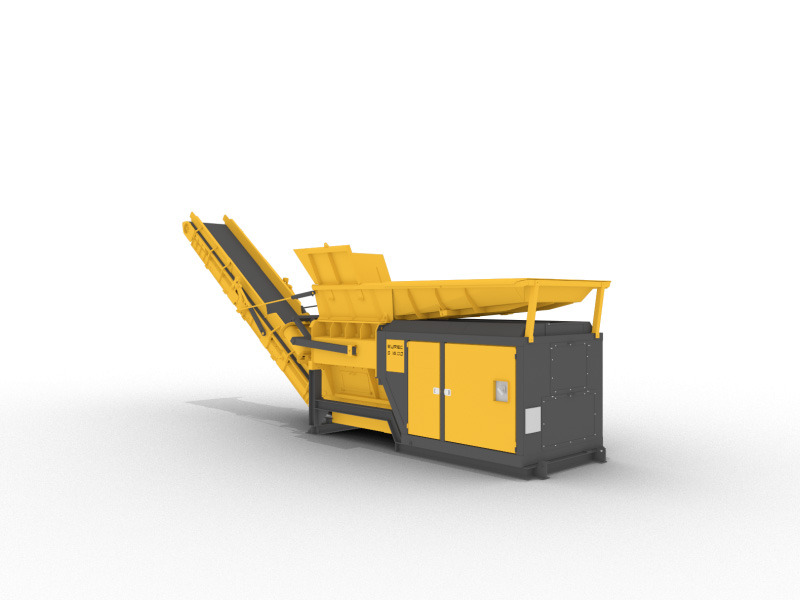

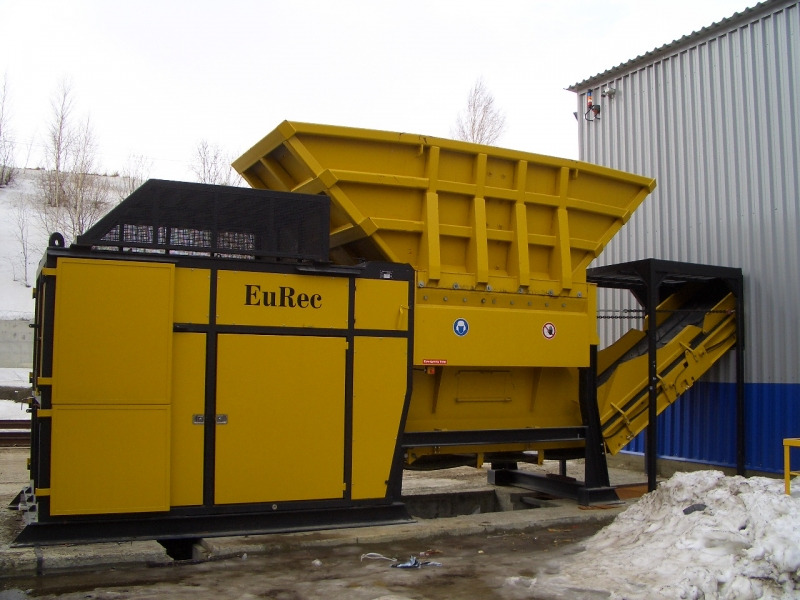

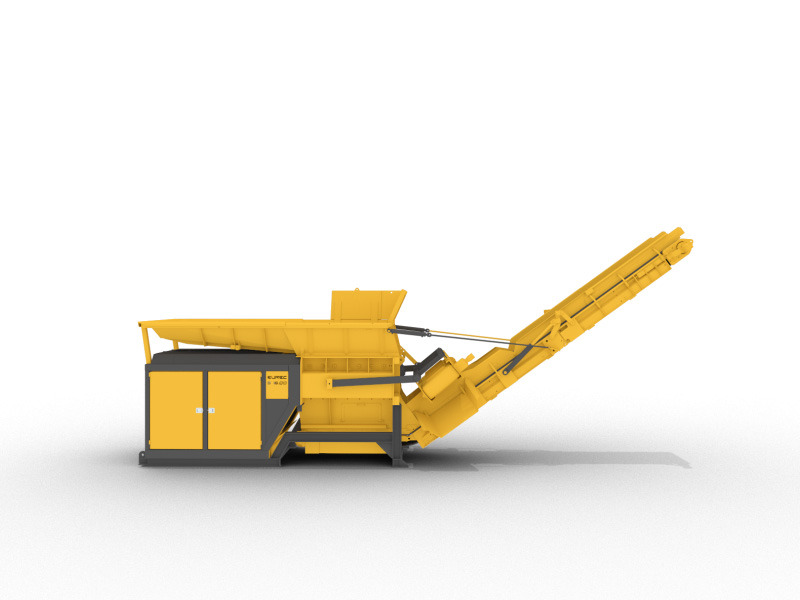

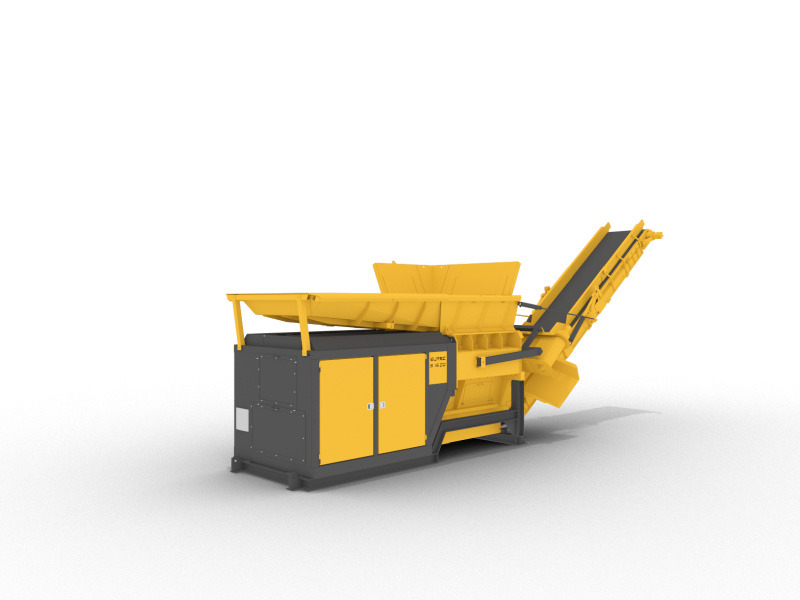

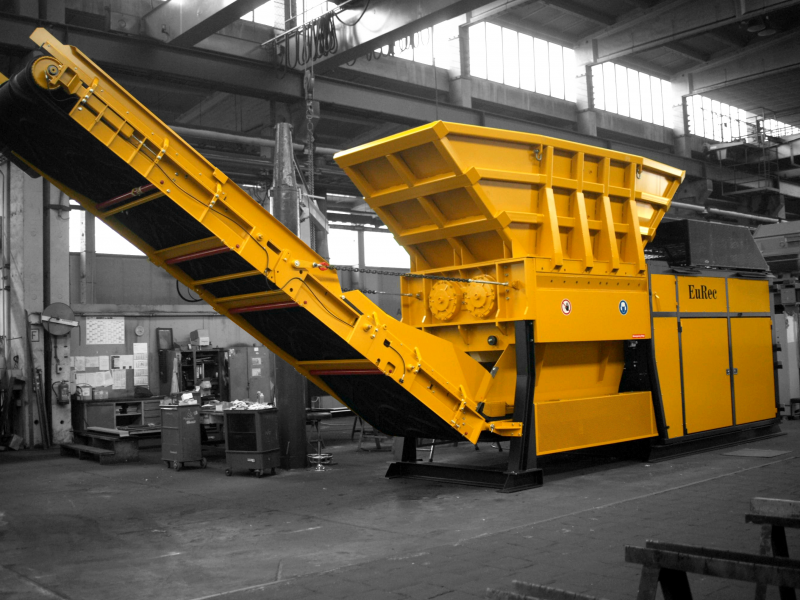

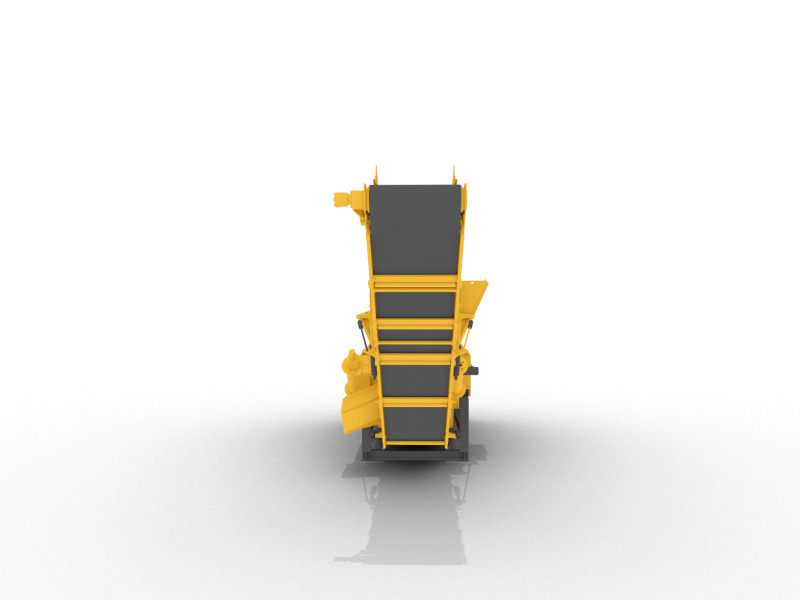

EUREC MODEL S 40.00 E (stationary)
Model S 40 is the largest of our preliminary shredders impresses with its extraordinary performance and reliability. To ensure ultimate performance, the S 40 is equipped with over 770 HP engin and the most powerful gearbox in our line-up. All of this is just to ensure expected productivity. Due to its dimensions and total weight, the S 40 unit is available as mobile version on a tracks and as stationary version with a diesel or electric drive.
KEY FEATURES AND OPTIONS
- Capacious infeed hopper equipped with hydraulicly lifted tipping table
- 571 KW (776 KM) diesel motor or 2 x 250KW (340 KM) electric motor
- Nominal gearbox torque 400.000 Nm
- Stable frame below the tipping hopper protects tipping hopper, exhaust system and hydraulic cylinders
- Unique dual shaft design
- Triangular torque supports below the screwed side-arranged combs protects fixings from shea-ring
- Additional free space in front of the tool shaft bearings (open at the top and bottom). Winding and abrasive material does not get in direct contact with the shaft sealings, whereby the operational lifespan of the bearings increases considerably.
PRODUCT DETAILS
| Technical Data | |
|---|---|
| Drive performance: |
Diesel motor: ca. 571 kW Electric motor: 2 x 250 kW |
|
Gearbox: |
EuRec Patent |
| Nominal torque: | 400.000 Nm |
| Tools: | EuRec Patent |
| Speed: |
rated speed 12 - 30 rpm variable regulation 0 - 30 rpm |
| Throughput*: | |
| Domestic waste: |
up to 150 t/h |
| Waste wood: | up to 170 t/h |
| Industrial waste: | up to 100 t/h |
| *Among others, the throughput depends on material composition, requested output grain size and type of feeding. | |
AREAS OF APPLICATION

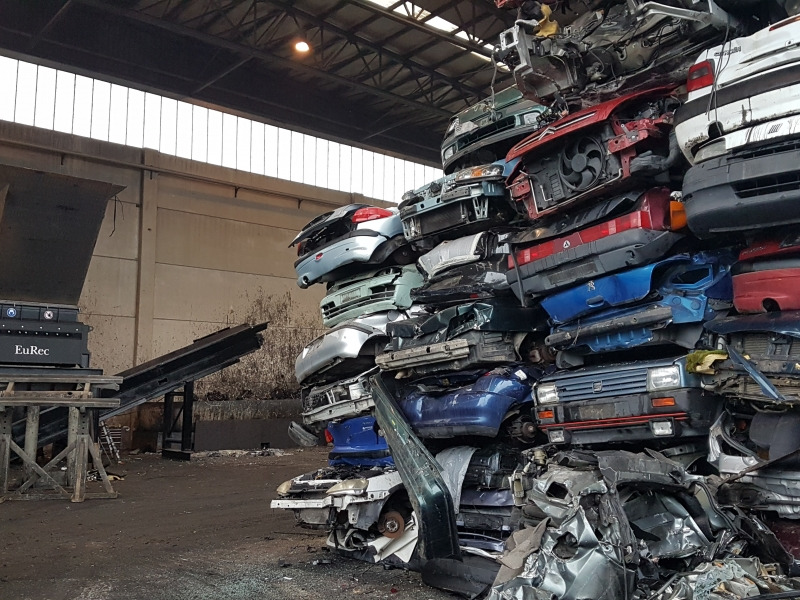

The fields of use of our most powerful shredder are as extensive as of the three smaller models: residual waste, industrial waste, bulky refuse, mixed construction waste, waste wood, demolition wood, logs and roots, cable drums, railway sleepers, pruning, plastics, aluminium profiles mattresses, carpets, tires, and many more. Even vehicle bodies are no obstacle for our S 40. The tools undergo just a low wearing.
COMPARISON TABLE
S 40.00 E
|
S 40.05 D
|
S 40.10 E
|
|
| Radio remote control | √ | √ | √ |
| Tipping hopper | √ | √ | ο |
| Hopper extension | ο | ο | ο |
| Wheel axle without StVZO | × | × | × |
| Special tools | ο | ο | ο |
| Breaker bar | ο | ο | ο |
| Discharge conveyor height > 4 m | ο | ο | ο |
| Conveyor belt monitoring | √ | √ | √ |
| Overbelt magnet (various) | ο | ο | ο |
| √ - inklusive ο - optional × - not applicable | |||
