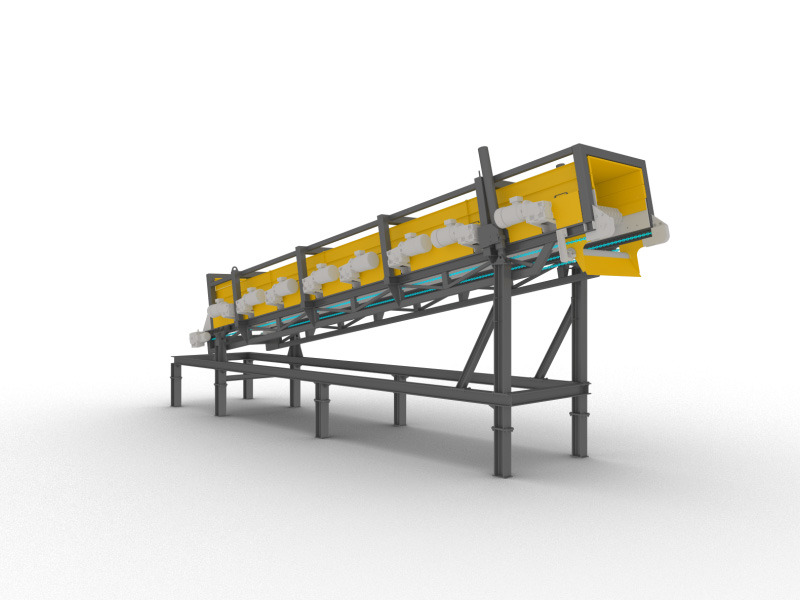

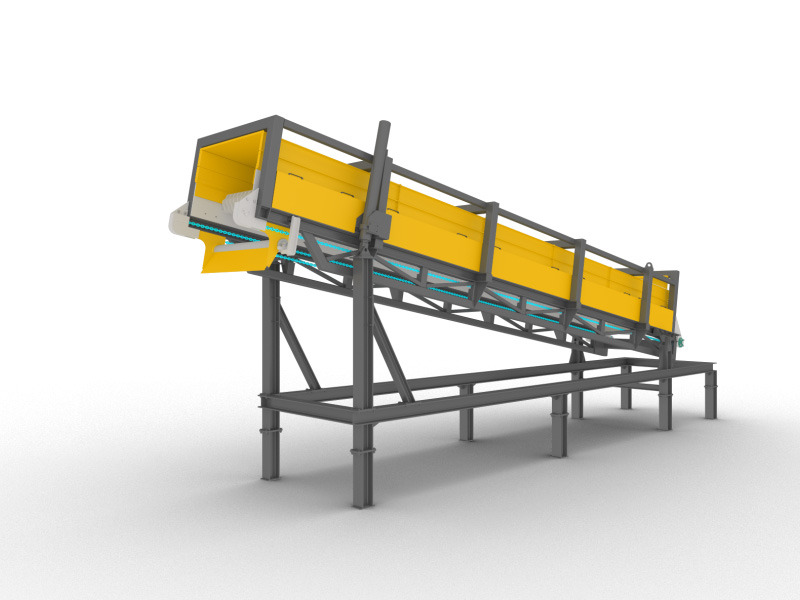

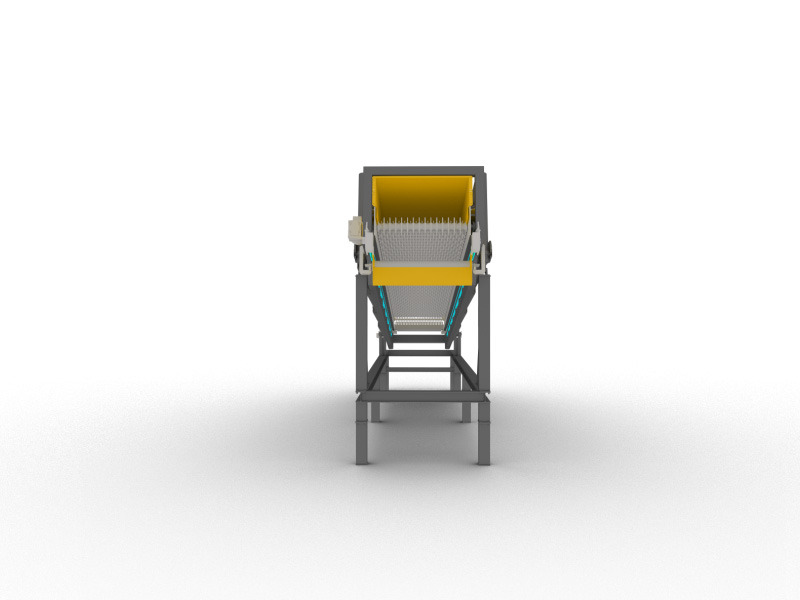

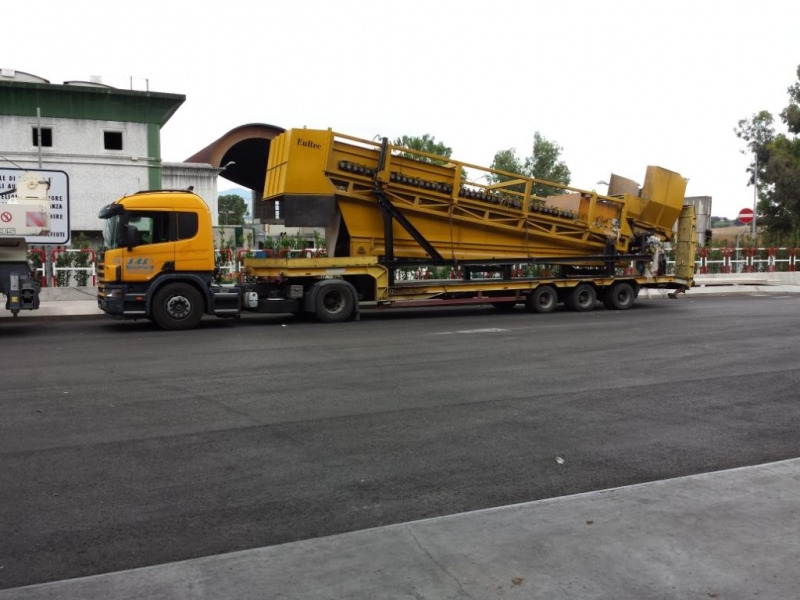

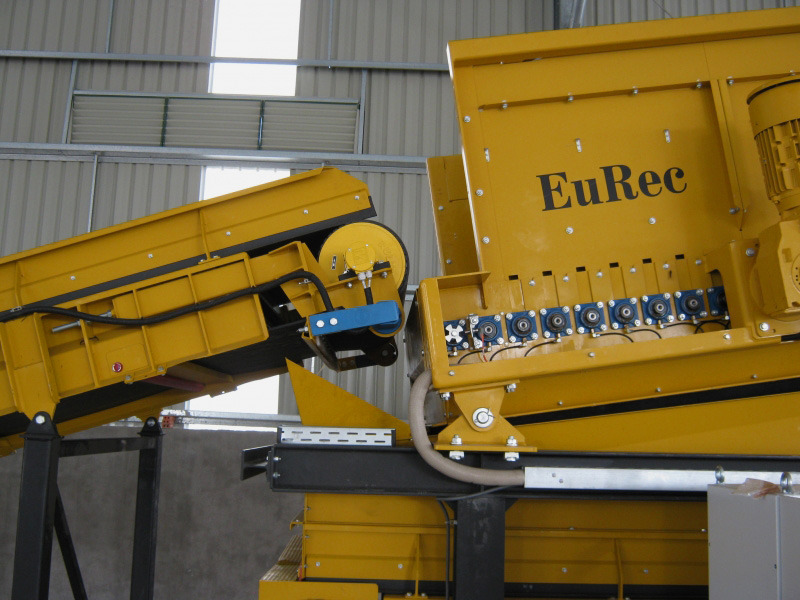

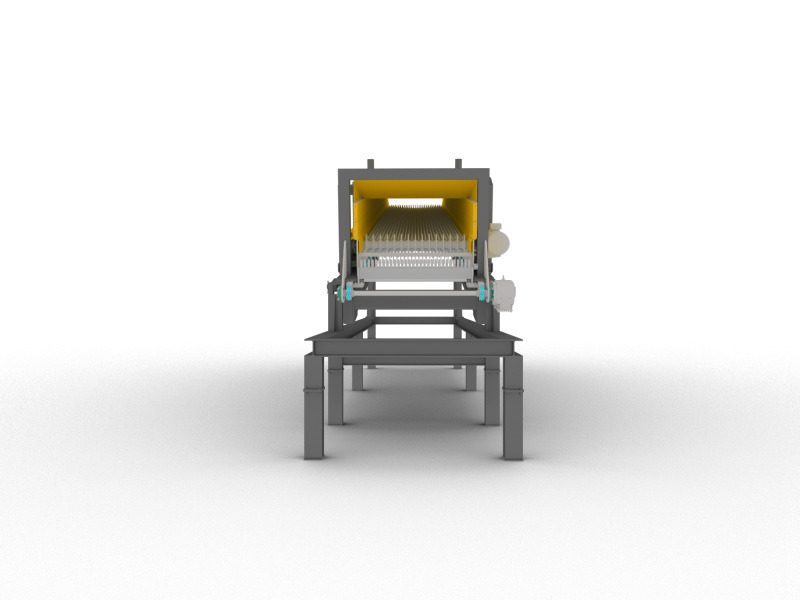

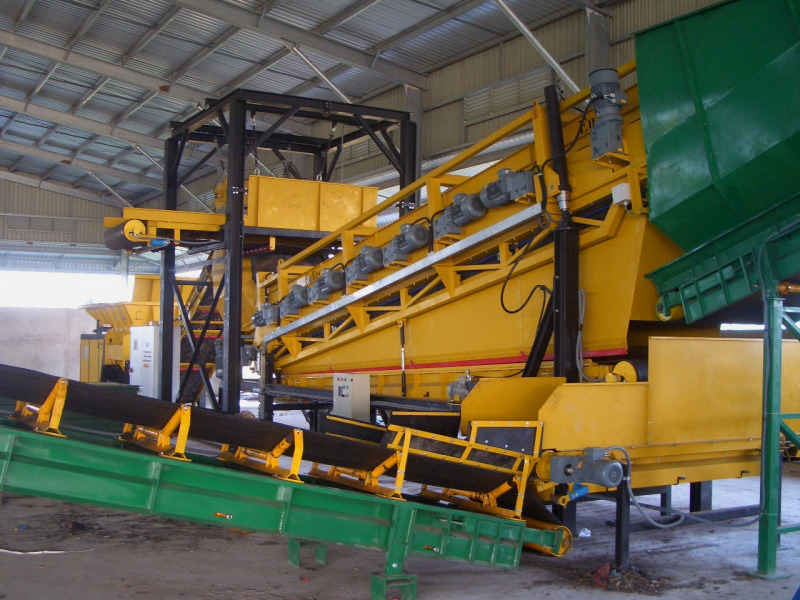

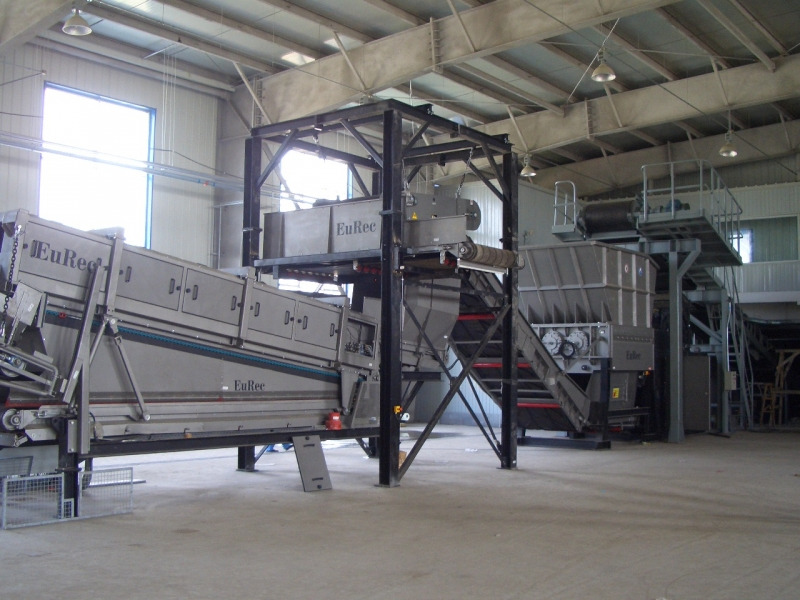

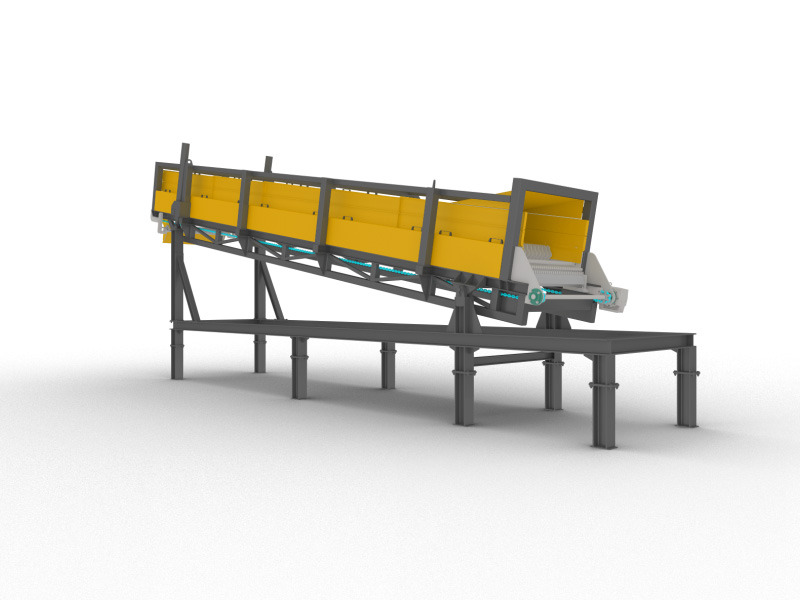

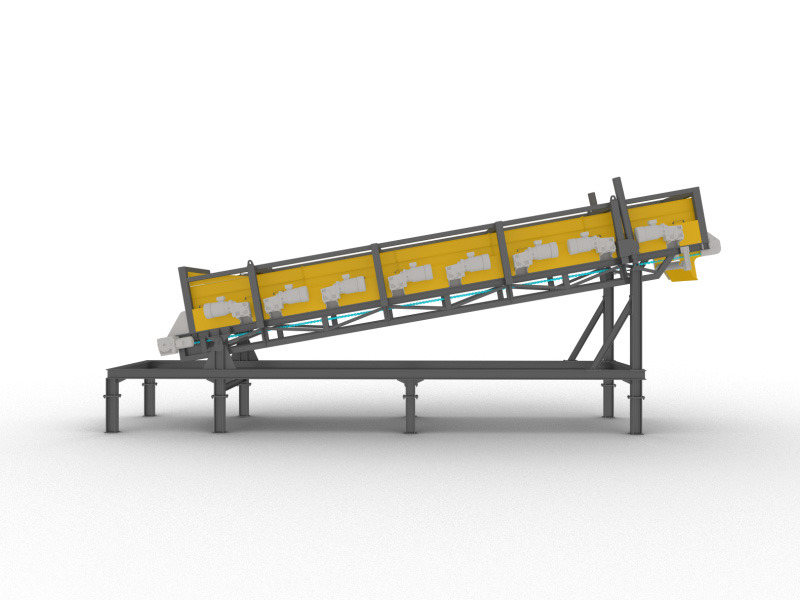

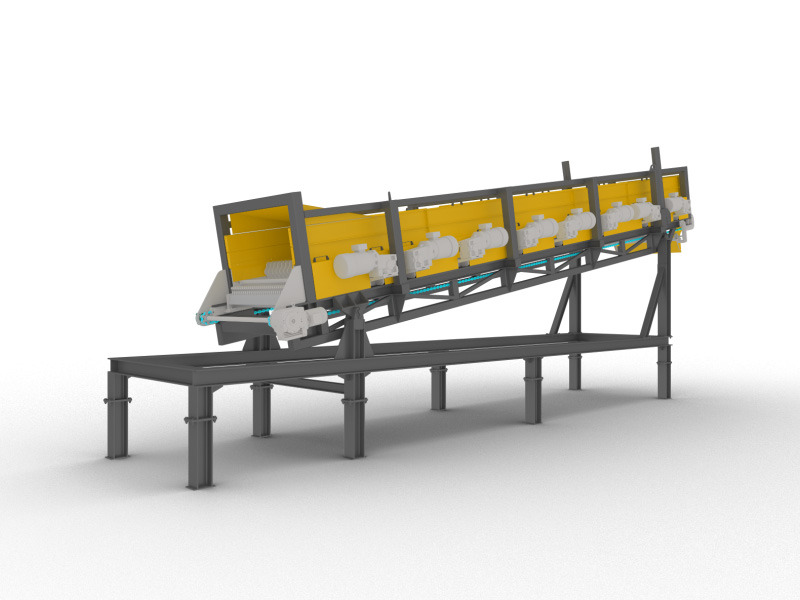

EUREC DISC SEPARATOR DSK
EuRec Disc Separator was developed to separate organics from material flow especially with high amount of moist organics or for the utilization of old landfills, almost blockage-free screening also of difficult waste material. Up to 90 % of the organic material as part of the material flow is separated from high-caloric fraction. Patented devices avoid entanglement and adhesion and guarantee a nearly trouble-free operation.
KEY FEATURES AND OPTIONS
- Screen deck on robust basic frame
- Screen discs made oflow-wear special steel
- Screen shaft drive via electric motors with each 11 kW drive performance as well as module-based via chains
- Automatic cleaning device below the screen shafts with comb teeth that are movable to three sides

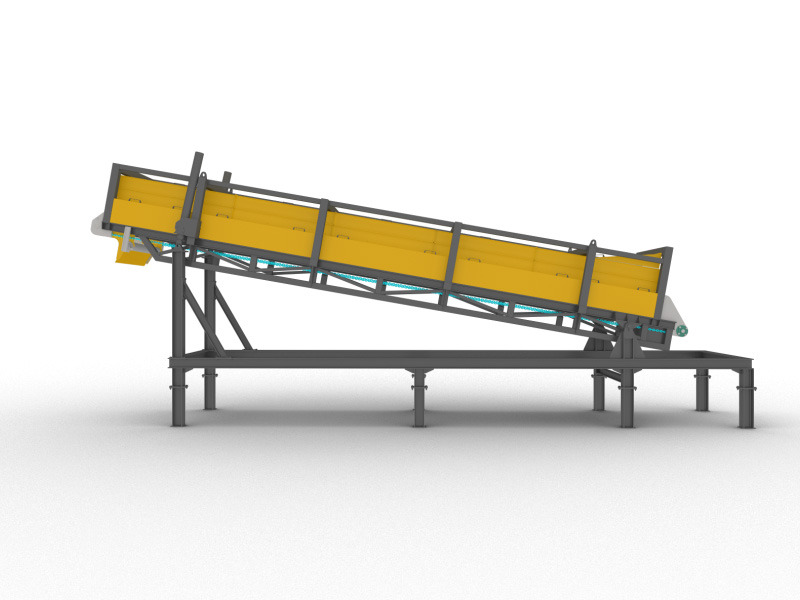

- Hydraulic screen deck adjustment, 8 – 18° inclination
- Screen shafts with double-cone sleeves
- Discharge chute for screen overflow
- Central bearing lubrication
- PLC control
PRODUCT DETAILS
| Technical Data | |
|---|---|
| Motors: |
Electric: x11 kW |
|
Feeding: |
By EuRec Bunker or Shredder |
| Wydajność*: | |
| Separation of organic components from domestic waste: | do 80 t/godz. |
| Screening of shredded domestic waste: | do 80 t/godz. |
| Landfill reclamation: | do 80 t/godz. |
| Separation of inert materials in waste incineration plants: | do 90 t/godz. |
| Separation of sewage sludge and other cohesive materials: | do 80 t/godz. |
| Screening of compost: | do 200 m3/godz. |
| *Wydajność uzależniona jest między innymi od rodzaju i składu materiału, pożądanej frakcji wyjściowej oraz rodzaju podawania. | |
AREAS OF APPLICATION
Domestic waste, industrial waste, waste incineration ash, compost, bark, road sweepings, wood, sewage sludge, mixed industrial waste, cohesive soil, lignite.
